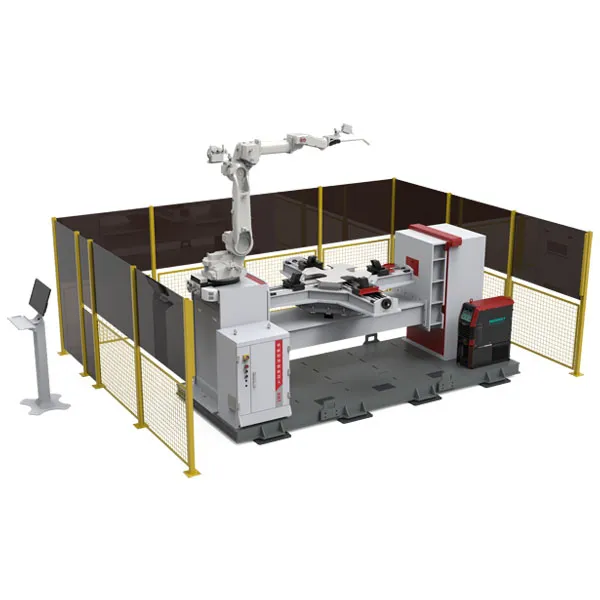

BW series H-shape postitoner welding workstation
Type
Single machine series
This eight-axis all-position intelligent welding robot has a large arm span and can achieve free and precise control of multiple axes, thus completing all-position welding operations such as flat welding and vertical welding.
BW series H-shape postitoner welding workstation
| Customization： | Available |
| Welding method： | Arc Welding Robot |
| Accuracy： | 0.5mm |
| Application： | Aerospace Industry, Automotive Industry, Construction Industry, Metal Fabrication Industry, Shipbuilding Industry |
| Welding Speed： | 0.5 m/min |
| Model NO： | KSBW0212 |
| Advantage： | No Teaching and Programming |
The world’s first teach-free and programming-free welding system, led by Connect Robotics, can reverse-engineer workpiece models through large-area line scanning, eliminating the need for drawings. With this system, a single operator can run 3 to 4 of our machines simultaneously.
Simply place the workpiece within the scannable range, and our robot will automatically scan, plan the path, and perform the welding.
Say goodbye to the hassles of teaching and programming.
Factory Planning
We offer customized factory layout designs to optimize workflow, space utilization, and productivity for your H-beam fabrication facility.
Installation&Commissioning
Our experienced team handles the entire installation process, ensuring your equipment is fully operational and fine-tuned for peak performance.
Onsite Training
We provide thorough training programs to equip your staff with the skills needed to operate and maintain our equipment effectively.
Consumables Supply
We supply high-quality consumables to ensure uninterrupted production and maintain the longevity of your equipment.
Product Details
| CONTENT | PARAMETER RANGE | UNIT | NOTES |
|---|---|---|---|
| series | Single machine series | / | Can be equipped with 2 dual axis positioners |
| Model Number | KSBW0212 | / | / |
| Degrees of Freedom | 6+2+2 | / | / |
| Required Ambient Temperature | -10~45 | ℃ | / |
| Maximum End Load | 6 | Kg | / |
| Working Range | W1800*L3000*H600 | mm | / |
| Peak Total Power | 45 | Kg | / |
| Rated Input Voltage | 380+/-10% | V | three-phase electricity |
| Rated Input Frequency | 50 | Hz | / |
| Footprint | 2400*2400 | mm | / |
| Color Customization | specified location | set | / |
| Customized labeling | specified location | set | / |

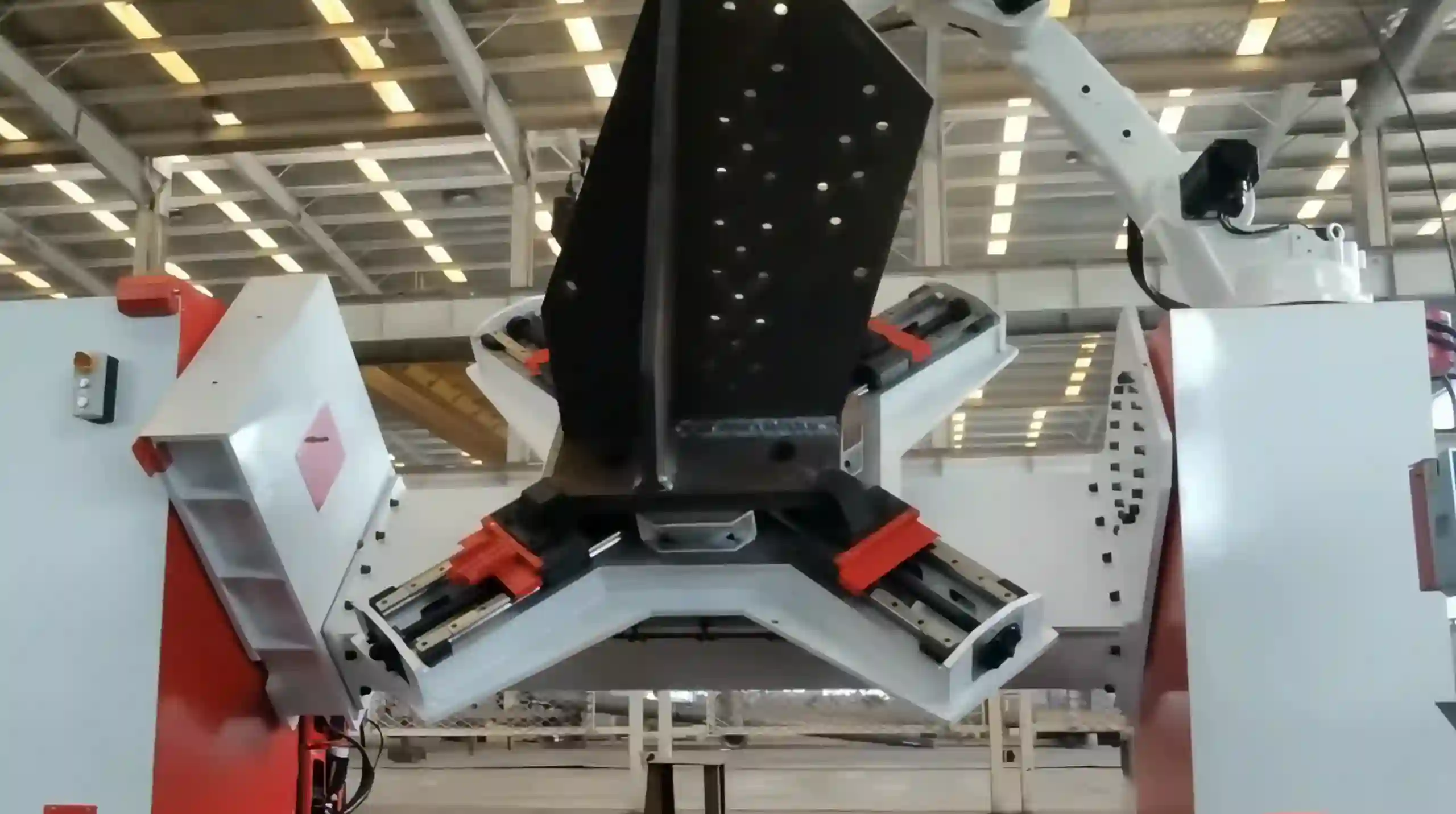

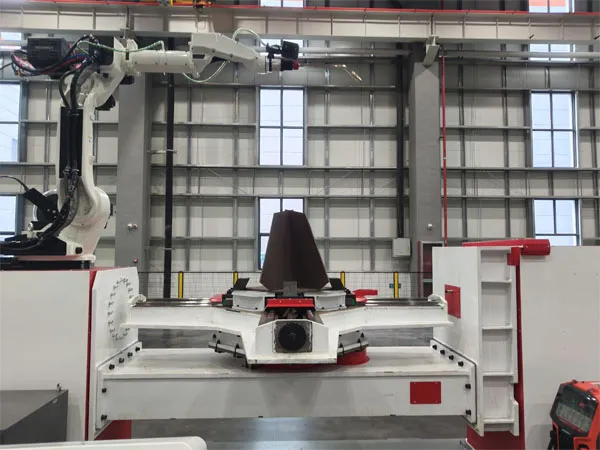

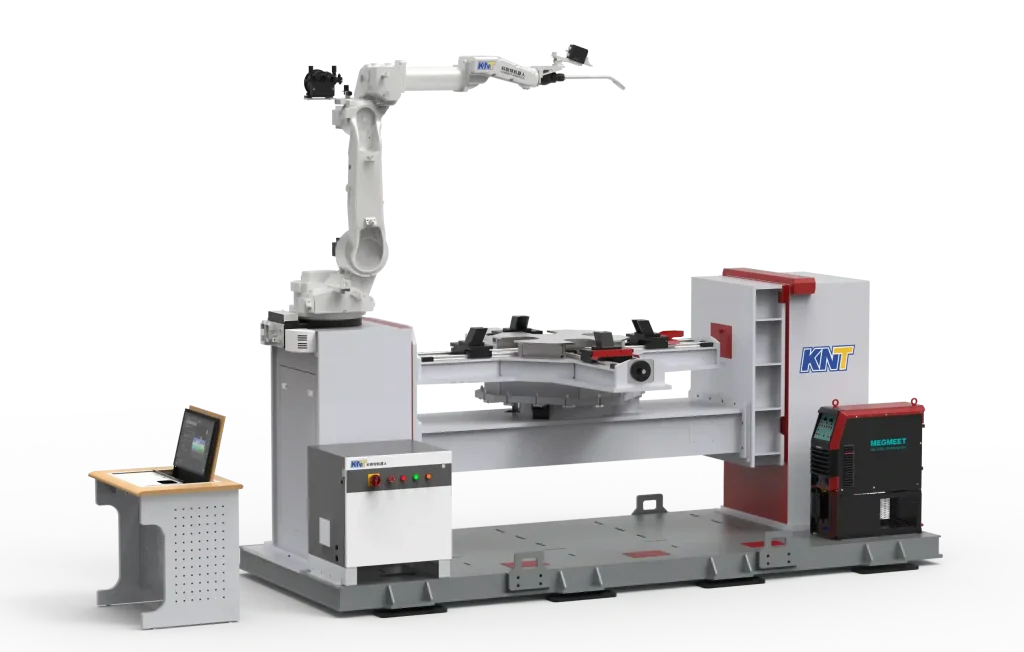

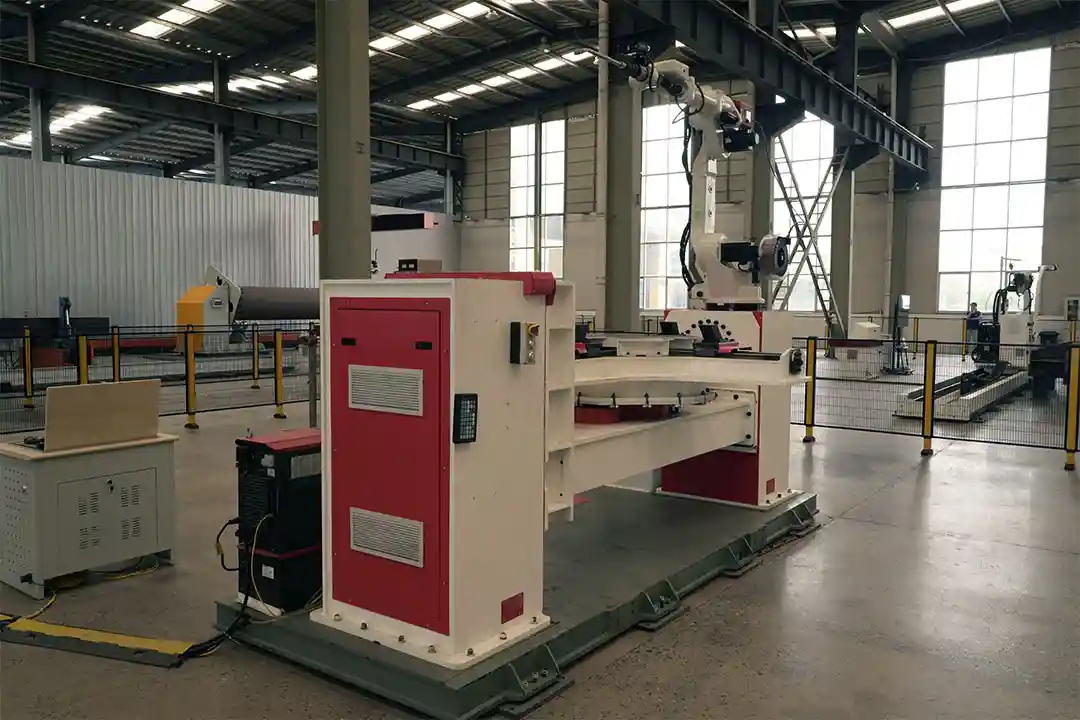

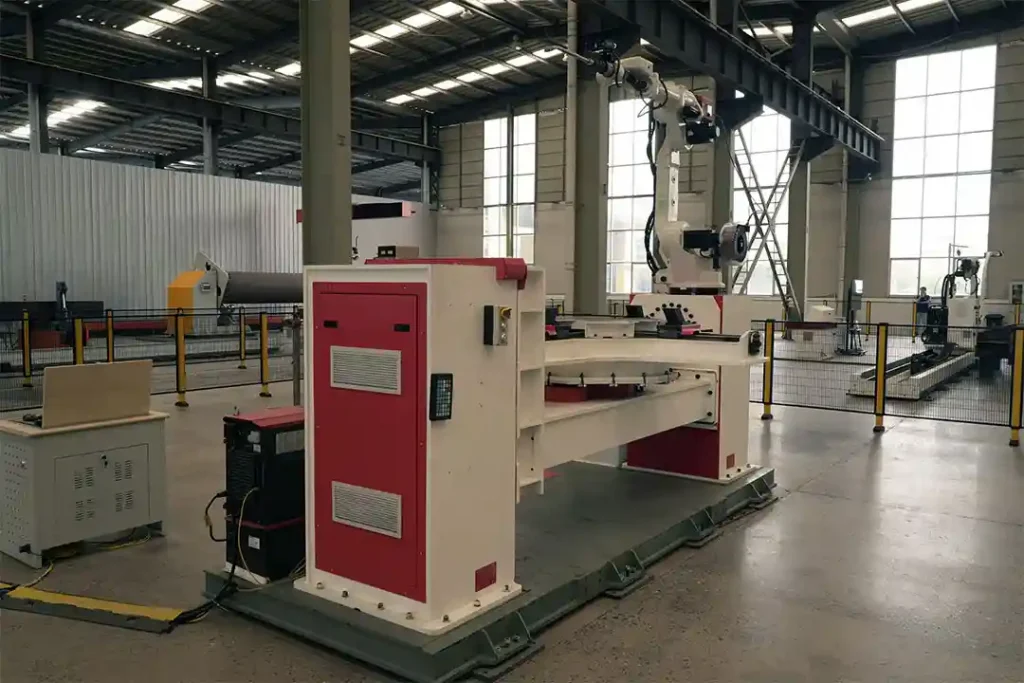

Product Gallery
Subsequent changes to these parameters will not be notified separately. For inquiries and quotations, please call or contact our customer service specialists.
