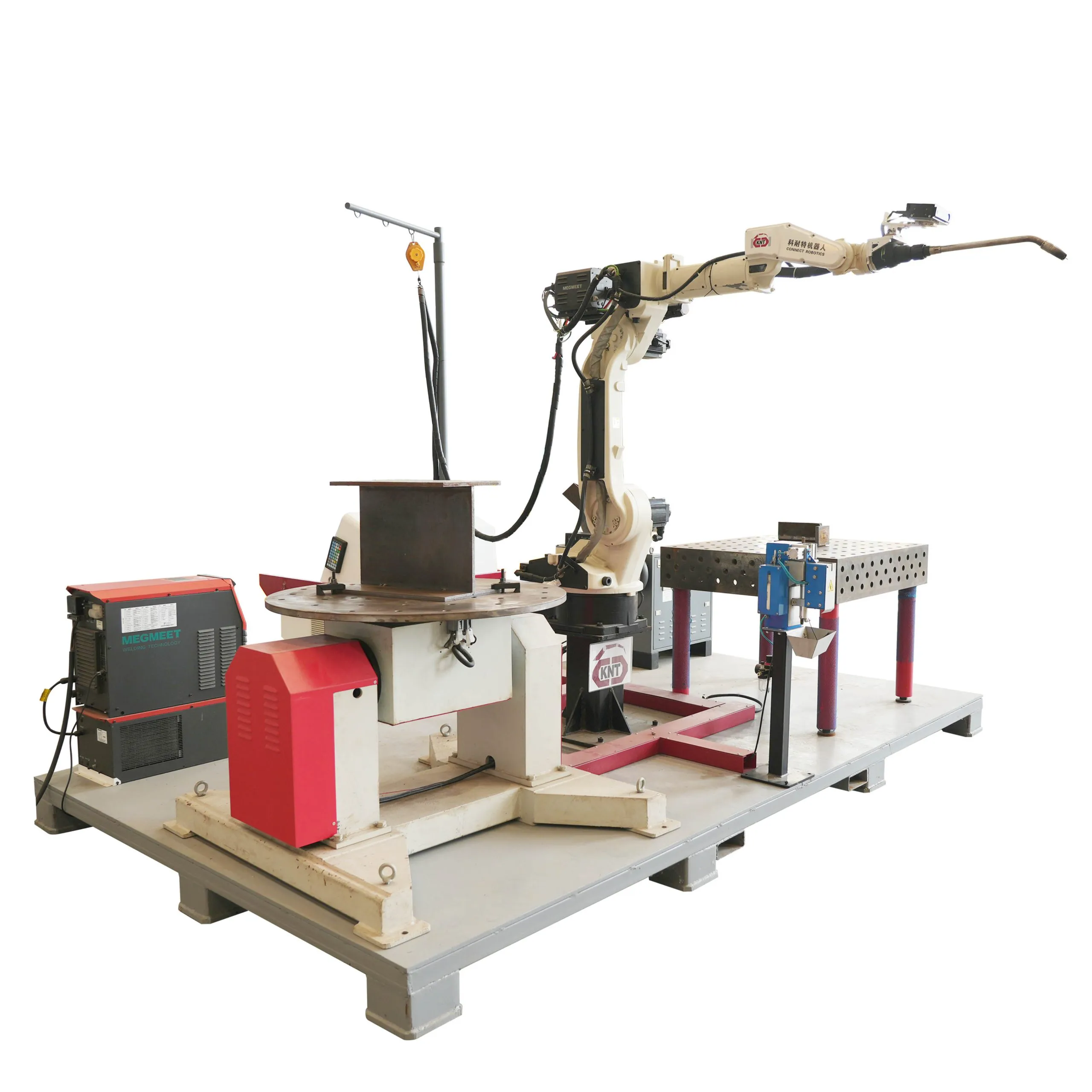

BW series robot welding workstation
Type
Single machine series
The robotic welding workstation is mainly suitable for the welding of various small components, such as corbels, cross grid structures, purlin pallets, etc. This robot stand-alone workstation is more suitable for processing various small components. Connect robotic welding station is sold directly from the manufacturer, with reasonable price and reliable quality!
BW Series Robotic Welding Workstation
| Customization： | Available |
| Welding method： | Arc Welding Robot |
| Accuracy： | 0.5mm |
| Application： | Aerospace Industry, Automotive Industry, Construction Industry, Metal Fabrication Industry, Shipbuilding Industry |
| Welding Speed： | 0.5 m/min |
| Model NO： | KSBW0210 |
| Advantage： | No Teaching and Programming |
The world’s first teach-free and programming-free welding system, led by Connect Robotics, can reverse-engineer workpiece models through large-area line scanning, eliminating the need for drawings. With this system, a single operator can run 3 to 4 of our machines simultaneously.
Simply place the workpiece within the scannable range, and our robot will automatically scan, plan the path, and perform the welding.
Say goodbye to the hassles of teaching and programming.
Factory Planning
We offer customized factory layout designs to optimize workflow, space utilization, and productivity for your H-beam fabrication facility.
Installation&Commissioning
Our experienced team handles the entire installation process, ensuring your equipment is fully operational and fine-tuned for peak performance.
Onsite Training
We provide thorough training programs to equip your staff with the skills needed to operate and maintain our equipment effectively.
Consumables Supply
We supply high-quality consumables to ensure uninterrupted production and maintain the longevity of your equipment.
Product Details
| CONTENT | PARAMETER RANGE | UNIT | NOTES |
|---|---|---|---|
| series | Single machine series | / | |
| Model Number | KSBW0210 | / | / |
| Degrees of Freedom | 6+2+2 | / | / |
| Required Ambient Temperature | -10~45 | ℃ | / |
| Maximum End Load | 6 | Kg | / |
| Working Range | H650/Φ700 | mm | / |
| Peak Total Power | 45 | Kg | / |
| Rated Input Voltage | 380+/-10% | V | three-phase electricity |
| Rated Input Frequency | 50 | Hz | / |
| Footprint | 2400*2400 | mm | / |
| Color Customization | specified location | set | / |
| Customized labeling | specified location | set | / |

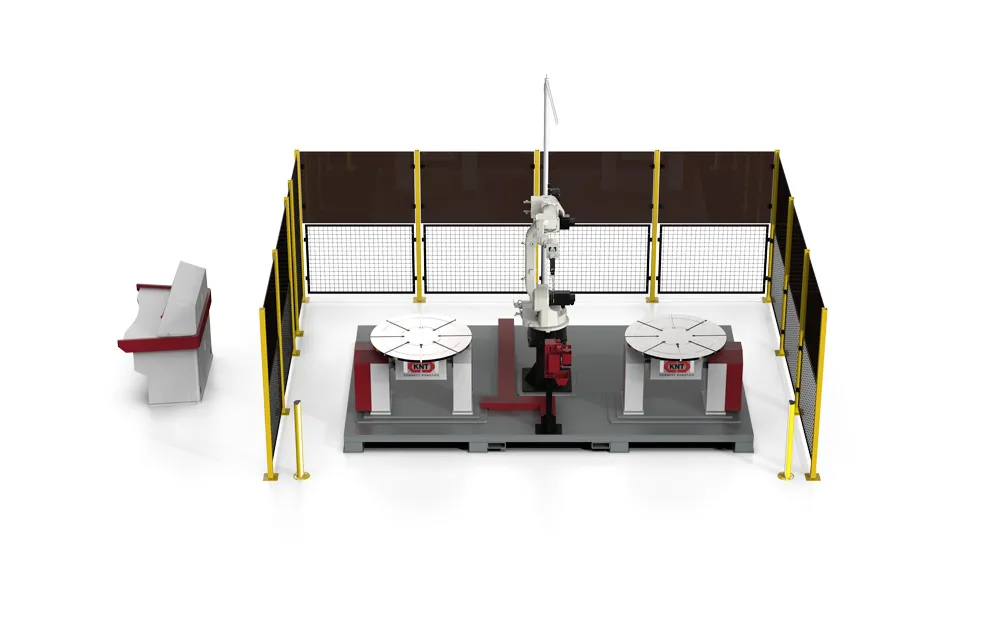

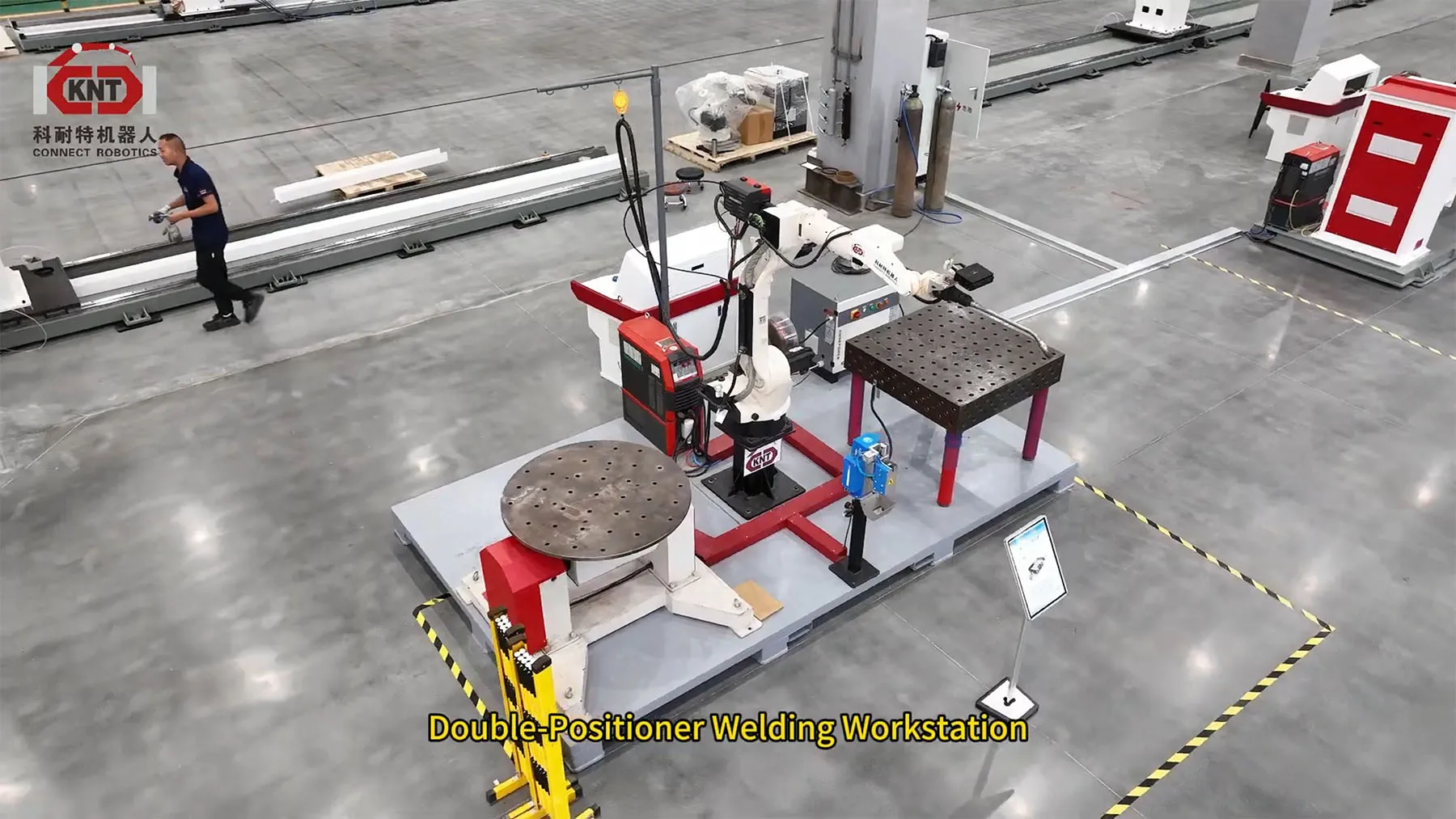

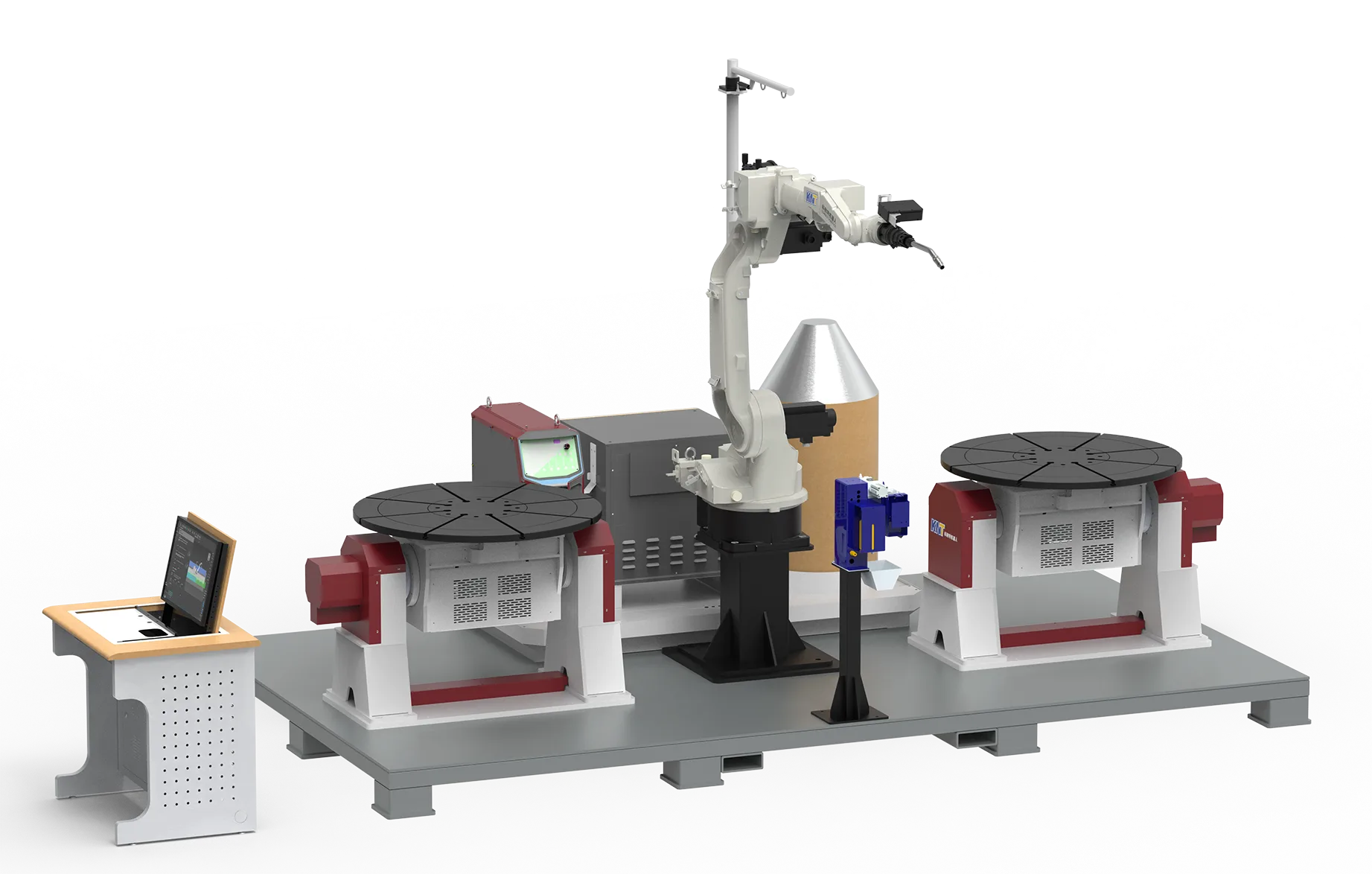

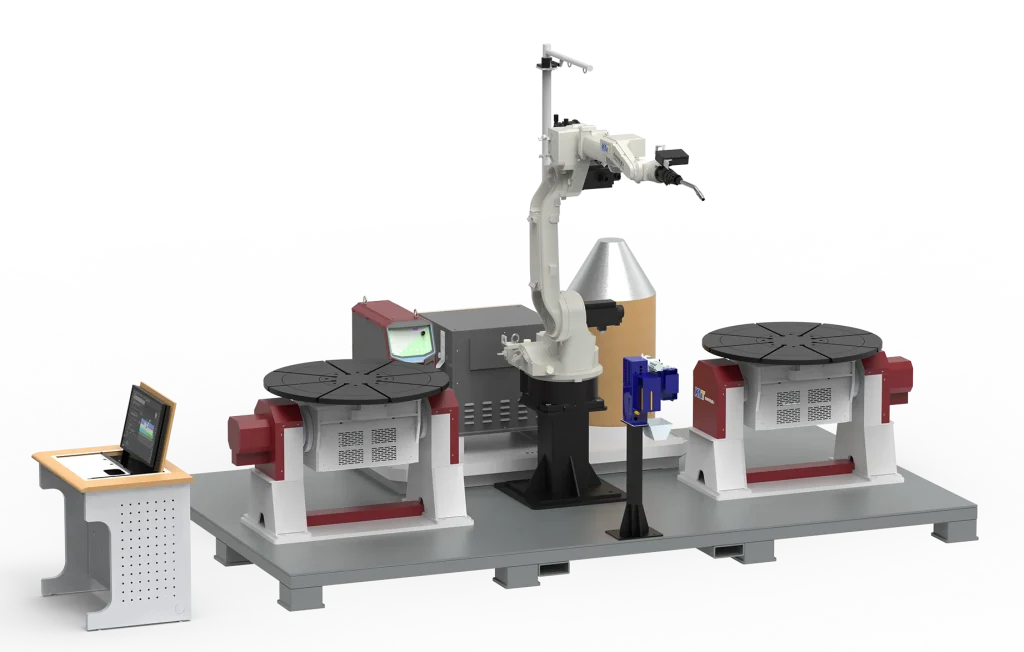

The robotic welding workstation is referred to as the robotic welding station, mainly has two types: single-machine double-station and single-machine single-station. We can also customize workbench or single-axis or double-axis positioner according to the type of workpiece and welding needs to meet the needs of various welding scenarios. Dual-station layout allows workpiece welding and handling to be carried out simultaneously, maximizing welding efficiency.
The world’s first technology supports TCP (robot terminal precision), hand-eye (vision system) automatic calibration, and automatic welding path adjustment after small-scale changes in the initial positioning of the workpiece. All external axes are controlled through the CNC system, supporting interpolated coordinated motion of the positioner and robotic arm.
The equipment adopts Metal Active Gas Arc Welding, referred to as MAG welding; a mixed gas shielded welding is formed by adding a small amount of oxidizing gas to argon gas. In China, the commonly used mixed gas is 80% Ar + 20% carbon dioxide. Since the proportion of argon in the mixed gas is relatively large, it is often called argon-rich mixed gas shielded welding.
Product Gallery
Subsequent changes to these parameters will not be notified separately. For inquiries and quotations, please call or contact our customer service specialists.
