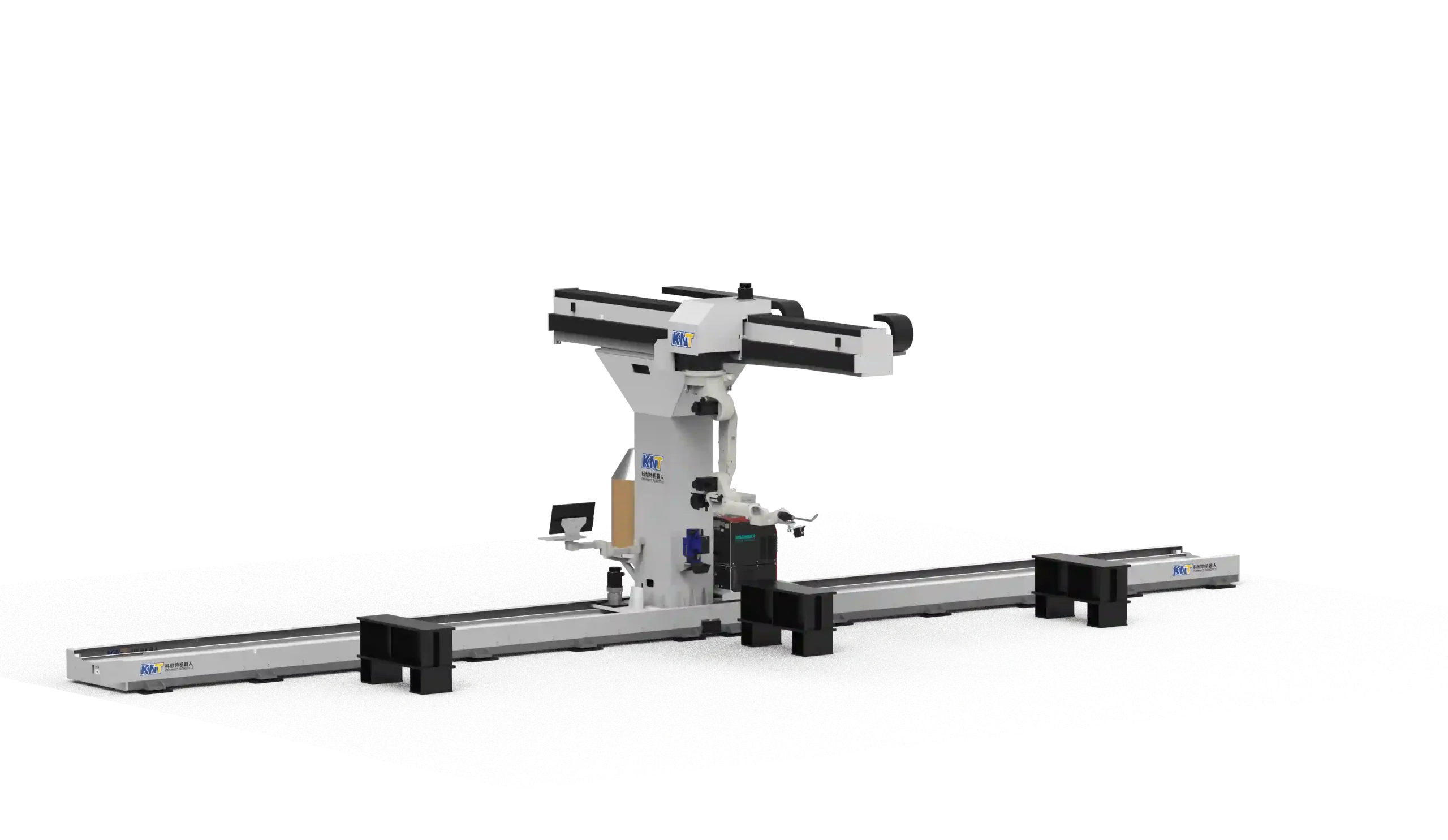

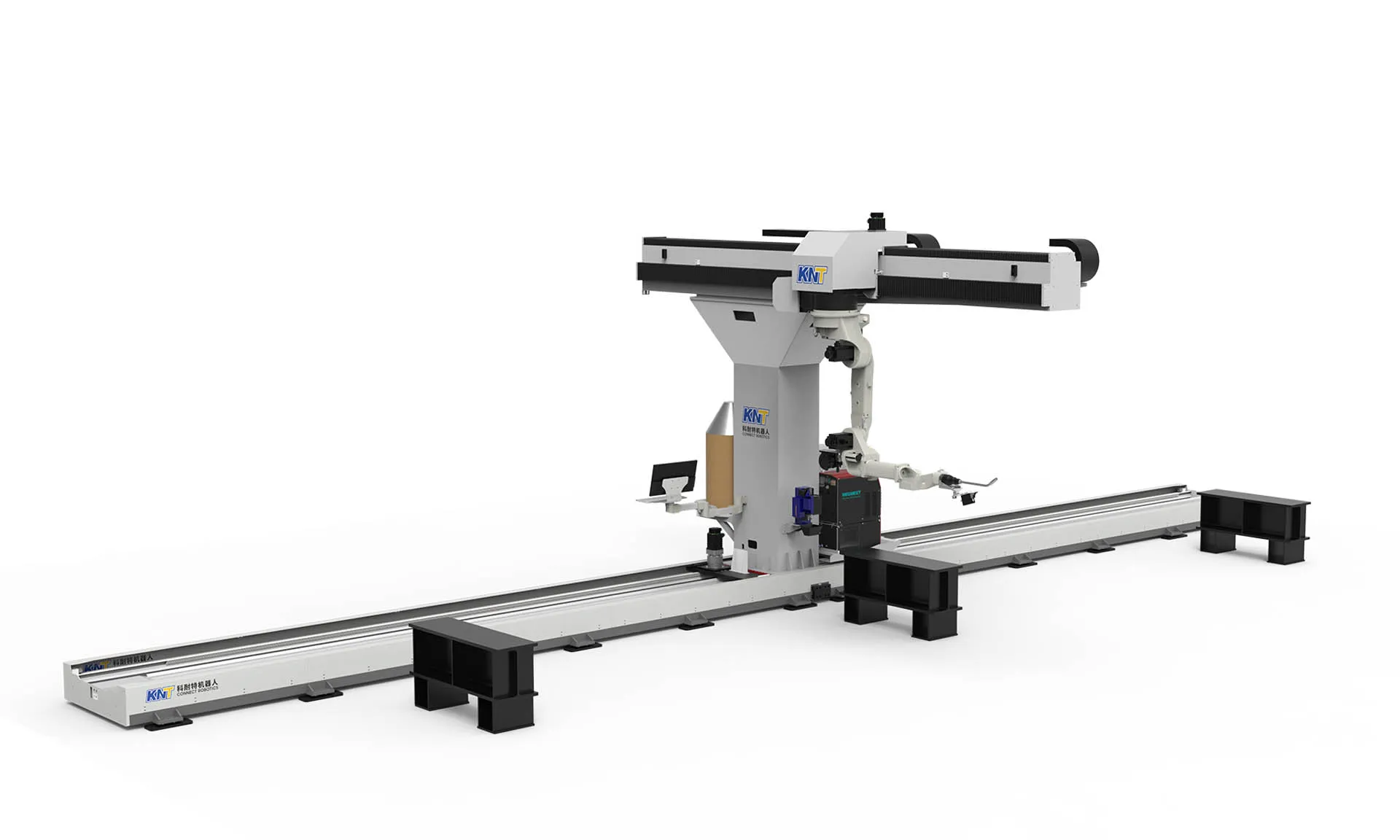

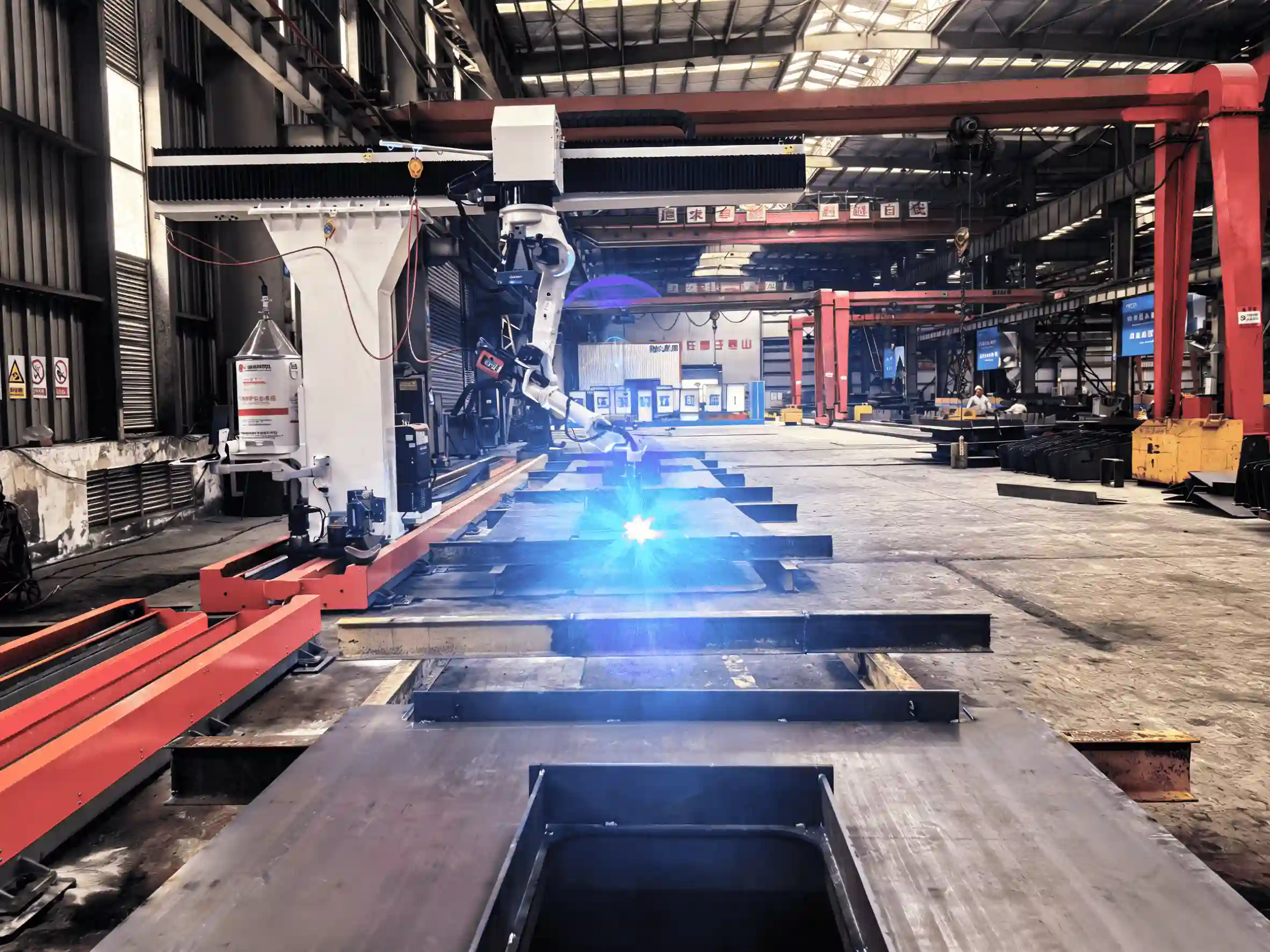

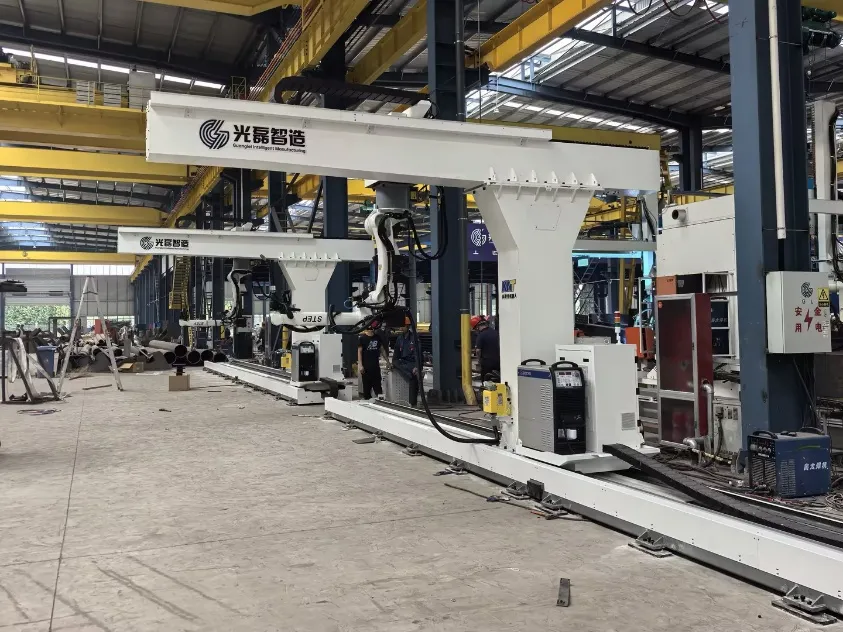

Eight-Axis Cantilever Welding Robot Workstation
Type
Cantilever series
This eight-axis all-position intelligent welding robot has a large arm span and can achieve free and precise control of multiple axes, thus completing all-position welding operations such as flat welding and vertical welding.
Eight-Axis Cantilever Welding Robot Workstation
| Workpiece material： | Low-alloy steel and carbon steel |
| Welding method： | Gas shielded arc welding |
| Weld specifications： | Φ0.8mm-Φ1.6mm |
| Application： | Aerospace Industry, Automotive Industry, Construction Industry, Metal Fabrication Industry, Shipbuilding Industry |
| Welding Speed： | 0.5 m/min |
| Model NO： | KSXB0014 |
| Advantage： | No Teaching and Programming |
The world’s first teach-free and programming-free welding system, led by Connect Robotics, can reverse-engineer workpiece models through large-area line scanning, eliminating the need for drawings. With this system, a single operator can run 3 to 4 of our machines simultaneously.
Simply place the workpiece within the scannable range, and our robot will automatically scan, plan the path, and perform the welding.
Say goodbye to the hassles of teaching and programming.
Factory Planning
We offer customized factory layout designs to optimize workflow, space utilization, and productivity for your H-beam fabrication facility.
Installation&Commissioning
Our experienced team handles the entire installation process, ensuring your equipment is fully operational and fine-tuned for peak performance.
Onsite Training
We provide thorough training programs to equip your staff with the skills needed to operate and maintain our equipment effectively.
Consumables Supply
We supply high-quality consumables to ensure uninterrupted production and maintain the longevity of your equipment.
Product Details
| Content | Parameter Range | Unit |
|---|---|---|
| series | Cantilever series | / |
| Model Number | KSXB0014 | / |
| Degrees of Freedom | 8 | / |
| Required Ambient Temperature | -10~45 | ℃ |
| Maximum End Load | 6 | kW |
| Working Range | W3500*L14000*H2200 | mm |
| Peak Total Power | 45 | kW |
| Rated Input Voltage | 380+/-10% | V |
| Rated Input Frequency | 50 | Hz |
| Footprint | 3000*15000 | mm |
| Color Customization | specified location | set |
| Customized labeling | specified location | set |

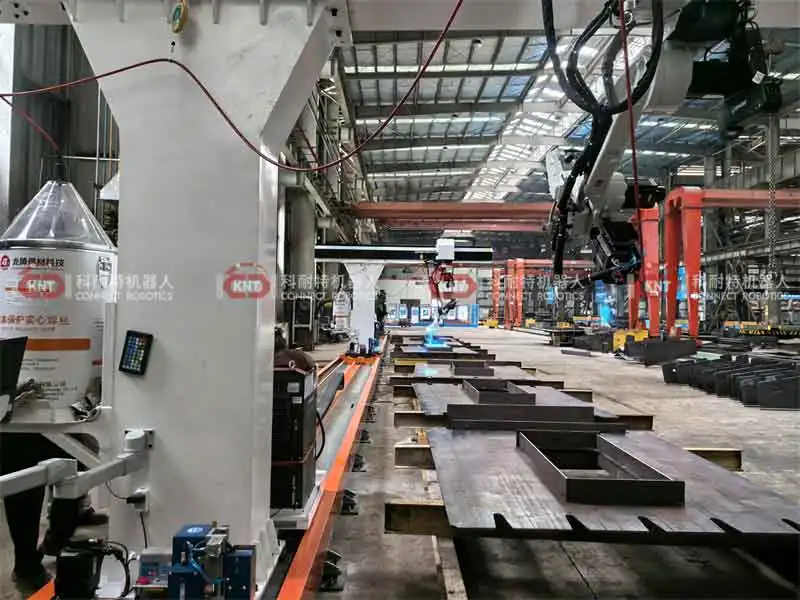

Product Introduction:
The cantilever robot intelligent welding workstation adopts the Bochu intelligent welding system and a large line scan 3D camera, integrating advanced functions such as point cloud reconstruction and large line scan initial positioning.
This system supports two processing modes:
- Model-driven processing allows direct import of 3D model files from Tekla, SolidWorks, or UG.
- For machining processes without drawings , the system will scan the workpiece to generate point cloud data.
Both modes can directly match welding process parameters, automatically identify the welding position, and generate an optimized welding path. This improves welding accuracy, efficiency, and processing flexibility.
The robot is equipped with an automatic torch cleaning device. Operators can adjust the guide rail length according to the workpiece size. The guide rail system also features automatic lubrication to ensure smooth and reliable operation.
This equipment is suitable for horizontal and vertical metal sheet workpieces. It supports straight welding, curved welding, arc welding, flat welding, and vertical welding.
It also provides complete solutions for common steel structures, including H-beams (homogeneous or modified sections with corbels), plate units, and partitions.
This system is widely used in the steel structure, bridge construction and shipbuilding industries.
System Poeration Process
Support for the current mainstream design software Tekla、NX、AutoDeskREVIT、AUTOdesk、FUSION360、CATIA、SolidWorks and etc.leading out of file format such as .STEP、.IFC、.IGES…
Three positioning modes
1.Raster positioning
2.Three-point positioning
3.Laser scanning positioning
Can be lead into the welding path in one key and edit the welding seams.
The system automatically matches the process according to the welding
seam form and plate thickness, without manual intervention.
The system automatically carries out the optimal path planning without
manual programming, and truly free programming and teaching.
Fool-type operation, the process is simple and effective to truly achieve
intelligent welding
