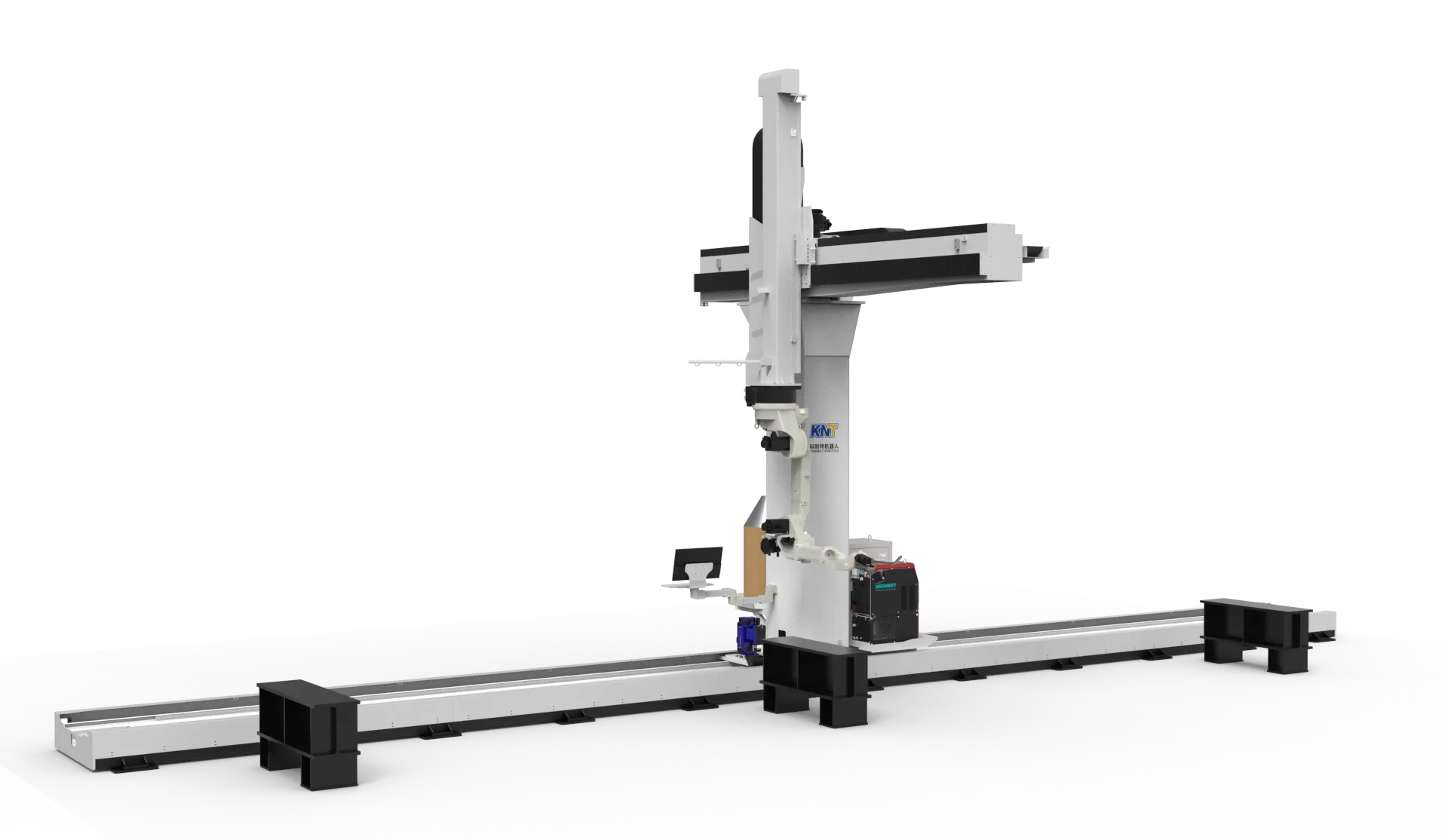

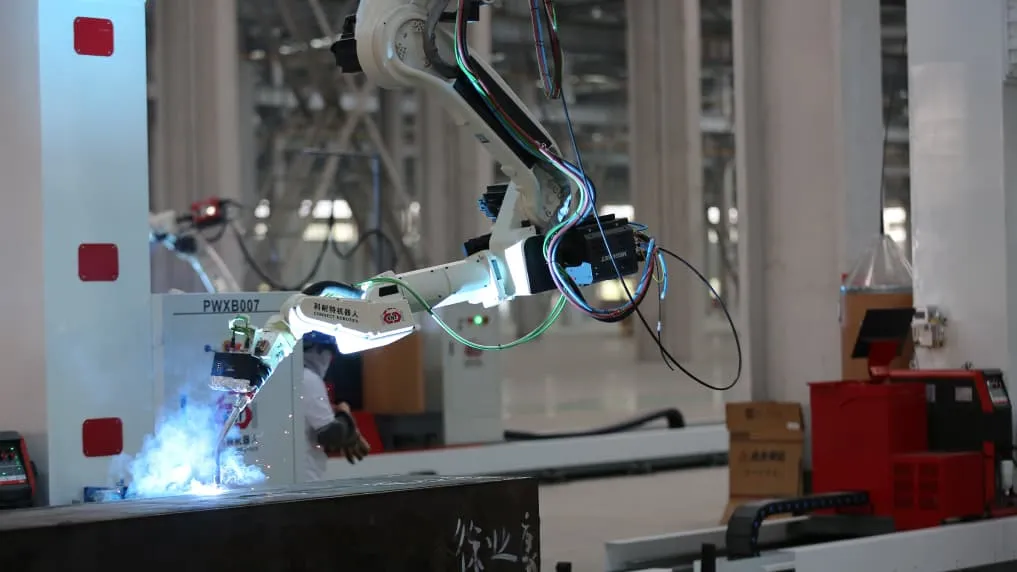

Nine-axis orbital cantilever welding workstation
Type
Cantilever series
The nine-axis all-position intelligent welding robot station has a large arm span and can achieve precise control with multiple degrees of freedom and realize all-position welding such as horizontal and vertical. Suitable for larger workpieces that require single-axis turning.

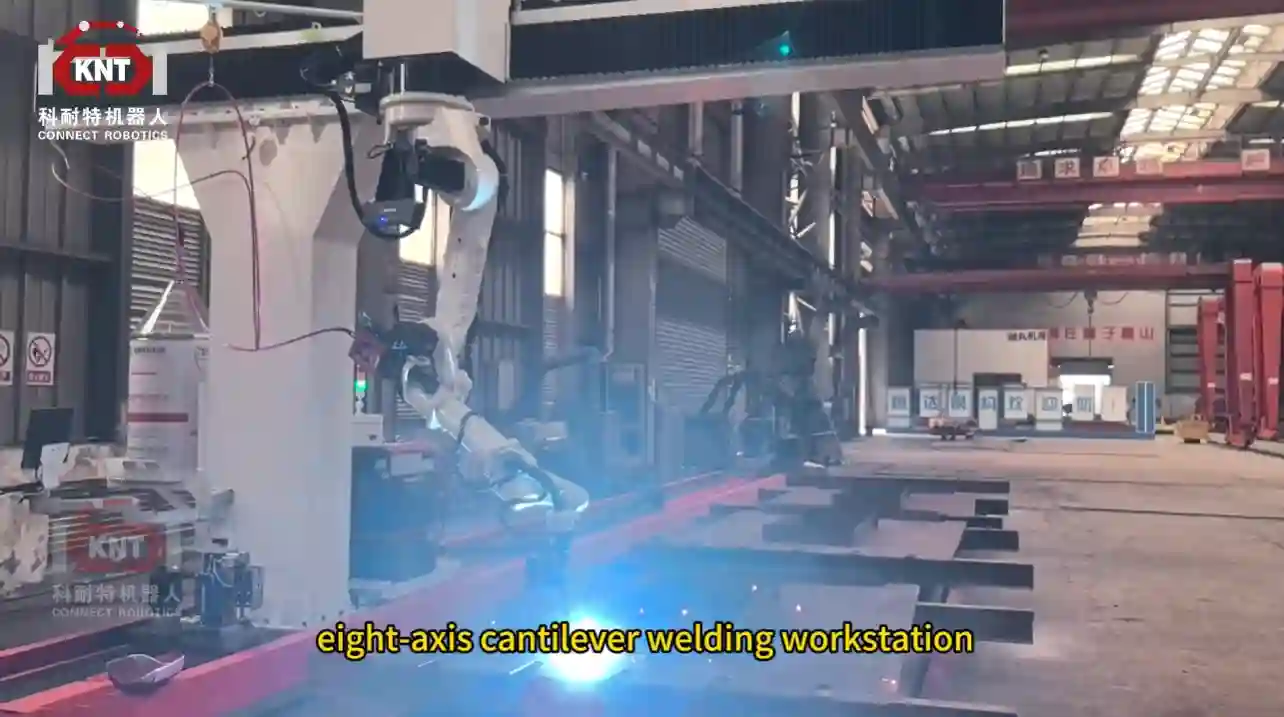

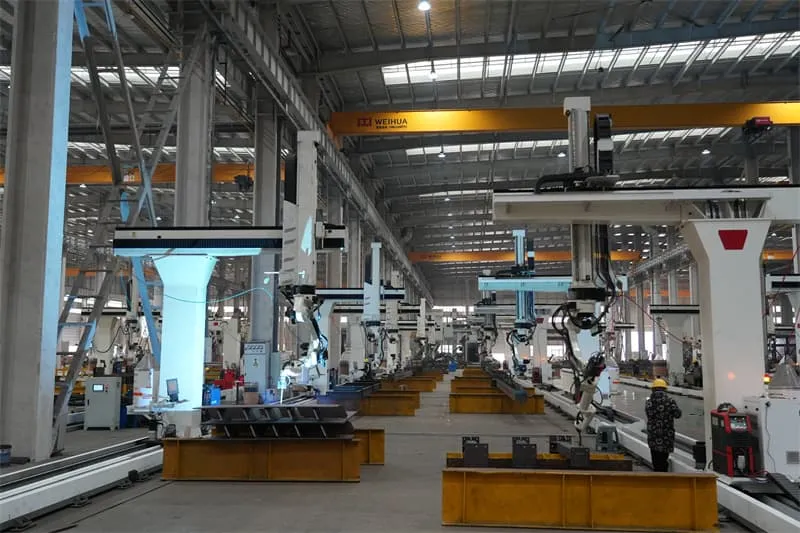

Eight-Axis Cantilever Welding Robot Workstation
| Workpiece material： | Low-alloy steel and carbon steel |
| Welding method： | Gas shielded arc welding |
| Weld specifications： | Φ0.8mm-Φ1.6mm |
| Application： | Aerospace Industry, Automotive Industry, Construction Industry, Metal Fabrication Industry, Shipbuilding Industry |
| Welding Speed： | 0.5 m/min |
| Model NO： | KSXB0018 |
| Advantage： | No Teaching and Programming |
The world’s first teach-free and programming-free welding system, led by Connect Robotics, can reverse-engineer workpiece models through large-area line scanning, eliminating the need for drawings. With this system, a single operator can run 3 to 4 of our machines simultaneously.
Simply place the workpiece within the scannable range, and our robot will automatically scan, plan the path, and perform the welding.
Say goodbye to the hassles of teaching and programming.
Factory Planning
We offer customized factory layout designs to optimize workflow, space utilization, and productivity for your H-beam fabrication facility.
Installation&Commissioning
Our experienced team handles the entire installation process, ensuring your equipment is fully operational and fine-tuned for peak performance.
Onsite Training
We provide thorough training programs to equip your staff with the skills needed to operate and maintain our equipment effectively.
Consumables Supply
We supply high-quality consumables to ensure uninterrupted production and maintain the longevity of your equipment.
Product Details
| CONTENT | PARAMETER RANGE | UNIT |
|---|---|---|
| series | Cantilever series | / |
| Model Number | KSXB0018 | / |
| Degrees of Freedom | 9 | / |
| Required Ambient Temperature | -10~45 | ℃ |
| Maximum End Load | 6 | kW |
| Working Range | W3500*L14000*H2200 | mm |
| Peak Total Power | 45 | kW |
| Rated Input Voltage | 380+/-10% | V |
| Rated Input Frequency | 50 | Hz |
| Footprint | 3000*15000 | mm |
| Color Customization | specified location | set |
| Customized labeling | specified location | set |
The nine-axis all-position intelligent welding robot station is referred to as the nine-axis orbital cantilever welding station. It has a large arm span and is suitable for larger workpieces that require single-axis flipping. It can achieve precise control of multiple degrees of freedom and realize laser welding in all positions, such as flat and vertical, such as the welding of large boxes such as box columns and box beams.

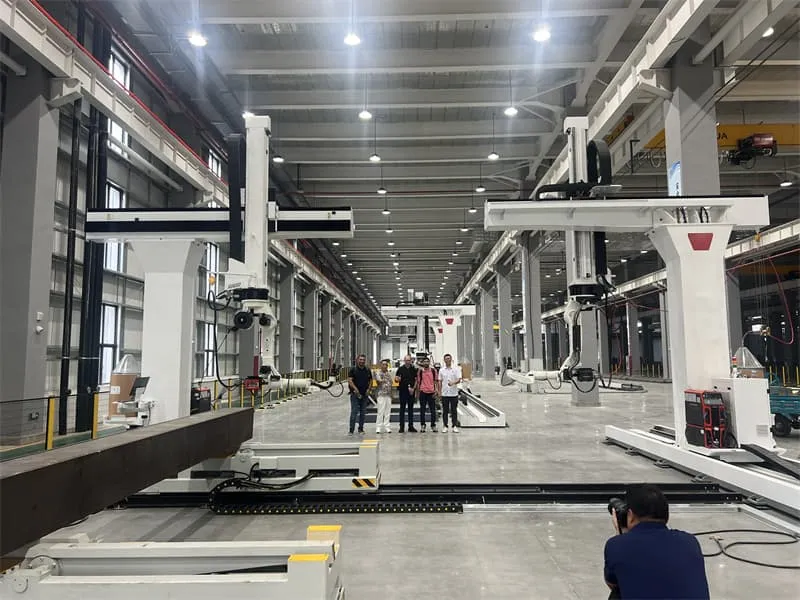

Advantages of orbital cantilever welding station:
The biggest advantage of the nine-axis orbital cantilever welding station is that the cantilever robot has a larger and deeper working area. At the same time, it has five independent research and development technical advantages: integrated robot drive and control, digital twin system, no teaching and no programming, built-in welding process library, and visual positioning and tracking module. One-click operation, new users can get started quickly, the welding precision is high and the quality is good.
Nine-axis orbital cantilever welding station configuration:

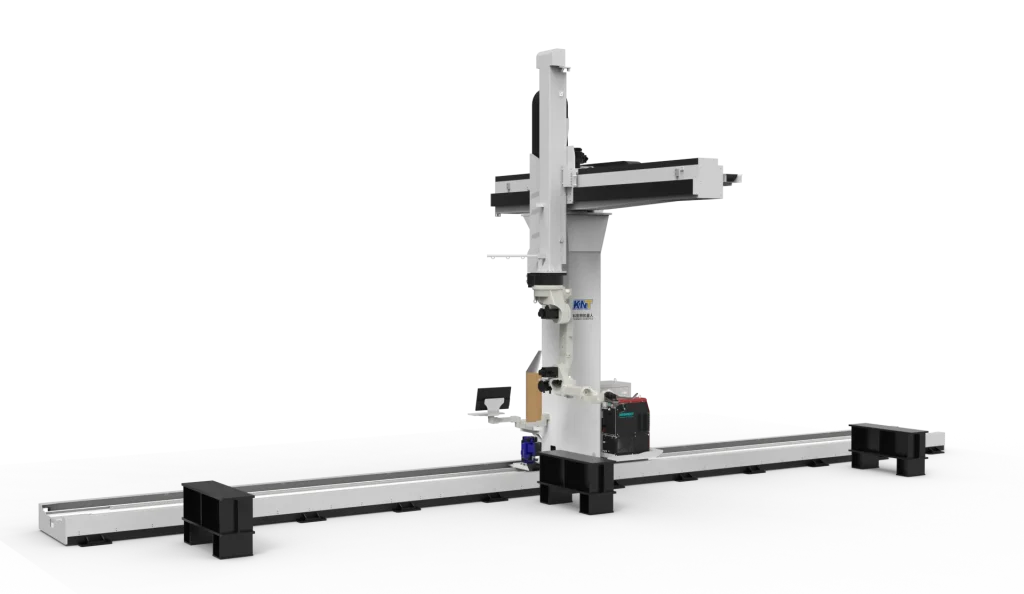

The nine-axis orbital cantilever welding station is mainly composed of a 6-axis welding robot body, ground rail, bracket, sliding table, cantilever, column, external axis, welding gun, gun cleaning station, welding system, vision system and system software and hardware.
The most critical thing for welding work is the robot and operating system. The robot body adopts a customized six-axis manipulator with multiple joints, multiple degrees of freedom, flexible movements and the latest advanced servo drive technology, which improves the welding performance and maximizes the welding performance. Movement time is shortened, resulting in high productivity. The CypWeld software is a control system developed by us specifically for intelligent welding. It has mechanical TCP calibration/zero calibration workpiece initial positioning, weld extraction, weld editing, batch generation of welds, path planning, simulation simulation, welding It has main functions such as seam positioning, arc tracking, continuous fillet welding, multi-layer multi-pass welding, parametric modeling and multi-workbench processing control. Advanced technology and simple operation.

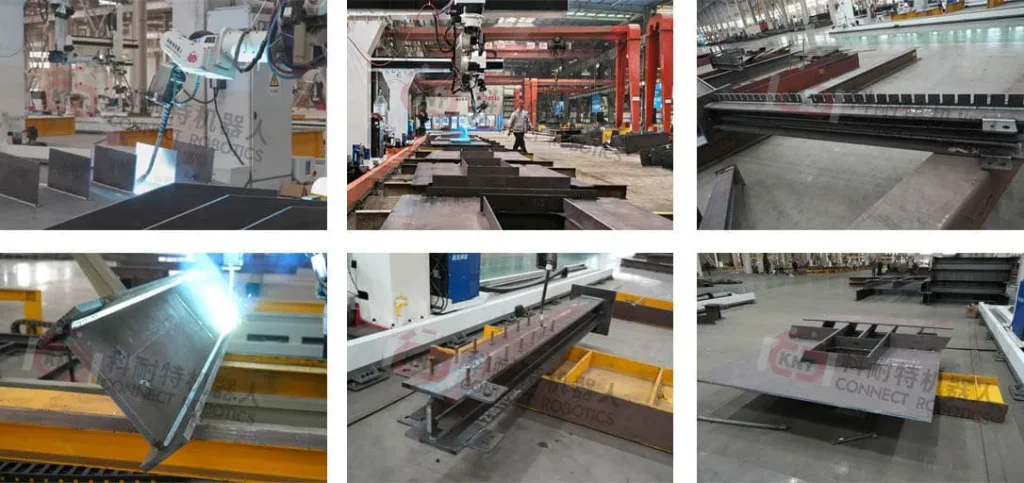

Orbital cantilever welding station processing plan:
Before starting the robot welding work, the workpiece needs to be spot welded and fixed manually, and the servo motor drives the slide table, and then the robot completes the rest of the welding work. The robot performs welding seam positioning through line laser to accurately find the starting point of the welding seam. The arc tracking process ensures the welding forming effect. At the same time, the system comes with a welding process library, which can be easily operated by non-welders; the process library supports manual fine-tuning to ensure Perfect welding effect.
System Poeration Process
Support for the current mainstream design software Tekla、NX、AutoDeskREVIT、AUTOdesk、FUSION360、CATIA、SolidWorks and etc.leading out of file format such as .STEP、.IFC、.IGES…
Three positioning modes
1.Raster positioning
2.Three-point positioning
3.Laser scanning positioning
Can be lead into the welding path in one key and edit the welding seams.
The system automatically matches the process according to the welding
seam form and plate thickness, without manual intervention.
The system automatically carries out the optimal path planning without
manual programming, and truly free programming and teaching.
Fool-type operation, the process is simple and effective to truly achieve
intelligent welding
