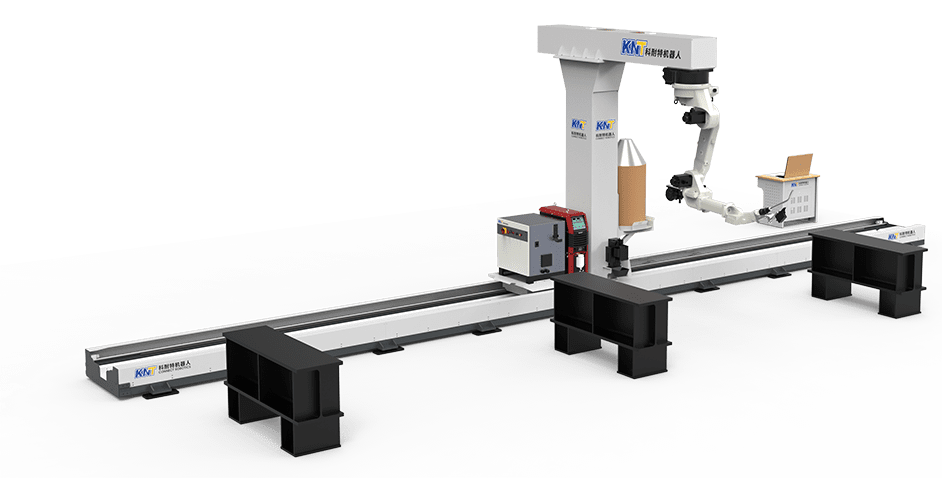

Cantilever series seven-axis welding station
Type
Cantilever series
The seven-axis orbital cantilever welding workstation is more suitable for welding workpieces with a large width-to-depth ratio. The welding accuracy is within 20mm, the maximum gap between welds is 3mm, the work efficiency is high, the welding quality is good, and the welding range is wider.
Cantilever series seven-axis welding station
| Workpiece material： | Low-alloy steel and carbon steel |
| Welding method： | Gas shielded arc welding |
| Weld specifications： | Φ0.8mm-Φ1.6mm |
| Application： | Aerospace Industry, Automotive Industry, Construction Industry, Metal Fabrication Industry, Shipbuilding Industry |
| Welding Speed： | 0.5 m/min |
| Model NO： | KSXB0012 |
| Advantage： | No Teaching and Programming |
The world’s first teach-free and programming-free welding system, led by Connect Robotics, can reverse-engineer workpiece models through large-area line scanning, eliminating the need for drawings. With this system, a single operator can run 3 to 4 of our machines simultaneously.
Simply place the workpiece within the scannable range, and our robot will automatically scan, plan the path, and perform the welding.
Say goodbye to the hassles of teaching and programming.
Factory Planning
We offer customized factory layout designs to optimize workflow, space utilization, and productivity for your H-beam fabrication facility.
Installation&Commissioning
Our experienced team handles the entire installation process, ensuring your equipment is fully operational and fine-tuned for peak performance.
Onsite Training
We provide thorough training programs to equip your staff with the skills needed to operate and maintain our equipment effectively.
Consumables Supply
We supply high-quality consumables to ensure uninterrupted production and maintain the longevity of your equipment.
Product Details
| CONTENT | PARAMETER RANGE | UNIT |
|---|---|---|
| Series | Cantilever series | / |
| Model Number | KSXB0012 | / |
| Degrees of Freedom | 7 | / |
| Required Ambient Temperature | -10~45 | ℃ |
| Maximum End Load | 6 | kW |
| Working Range | W1500*L12000*H2000 | mm |
| Peak Total Power | 45 | kW |
| Rated Input Voltage | 380+/-10% | V |
| Rated Input Frequency | 50 | Hz |
| Footprint | 3000*15000 | mm |
| Color Customization | specified location | set |
| Customized labeling | specified location | set |
The seven-axis orbital cantilever welding workstation is referred to as the orbital cantilever welding workstation. Compared with the single-machine welding robot workstation and the ground rail welding workstation, a cantilever is added to enable follow-up control of the robot and the track. It has a larger working area and is suitable for a larger aspect ratio. Welding of workpieces, such as H-shaped steel, roof beams, box columns and other fillet weld components. The welding accuracy is within 20mm, the maximum gap between welds is 3mm, the work efficiency is high, the welding quality is good, and the welding range is wider
Advantages of orbital cantilever welding workstation:
The biggest advantage of the seven-axis orbital cantilever welding workstation compared to other welding equipment is that the cantilever robot has a larger working area and is suitable for welding workpieces with a larger aspect ratio. The integrated robot drive and control system requires no teaching or programming, automatically plans the path, and automatically scans the line laser. The robot quickly finds the starting point and end point of the welding seam. The scene model and the actual object are presented in a 1:1 ratio. With one click of a command, you can start precise welding. The operation is simple and new users can get started quickly.
Orbital robotic welding station configuration:
The biggest advantage of the seven-axis orbital cantilever welding workstation compared to other welding equipment is that the cantilever robot has a larger working area and is suitable for welding workpieces with a larger aspect ratio. The integrated robot drive and control system requires no teaching or programming, automatically plans the path, and automatically scans the line laser. The robot quickly finds the starting point and end point of the welding seam. The scene model and the actual object are presented in a 1:1 ratio. With one click of a command, you can start precise welding. The operation is simple and new users can get started quickly.
Orbital cantilever welding workstation configuration:
The seven-axis orbital cantilever welding workstation consists of a 2-meter 6-axis robot dedicated to high-precision welding, a 14-meter ground rail bracket, a BCW-600Pro seam finder, a cantilever, a column, a sliding table, a water-cooled welding machine, an automatic gun cleaning station, an operating table, and Cypweld automatic welding software lamp composition. Among them, the laser seam finder, five-hand handheld box, driver, industrial computer software, positioner, and robot linkage are all designed and developed by us independently, with reliable quality and worry-free after-sales.
System Poeration Process
Support for the current mainstream design software Tekla、NX、AutoDeskREVIT、AUTOdesk、FUSION360、CATIA、SolidWorks and etc.leading out of file format such as .STEP、.IFC、.IGES…
Three positioning modes
1.Raster positioning
2.Three-point positioning
3.Laser scanning positioning
Can be lead into the welding path in one key and edit the welding seams.
The system automatically matches the process according to the welding
seam form and plate thickness, without manual intervention.
The system automatically carries out the optimal path planning without
manual programming, and truly free programming and teaching.
Fool-type operation, the process is simple and effective to truly achieve
intelligent welding
