KNT welding workstation creates intelligent industrial scenarios, enabling one operator to manage multiple machines and transforming manual labor into smart welding solutions.
7-Axis Industrial Robot Welding Workstation Automated Arc Welding Robot for Steel Structure Welding
Product Model
Add Your Heading Text Here
Product Details
Customization:Available
Accuracy:0.1 mm
Application:Aerospace Industry, Automotive Industry, Construction Industry, Metal Fabrication Industry, Shipbuilding Industry
Product Introduction

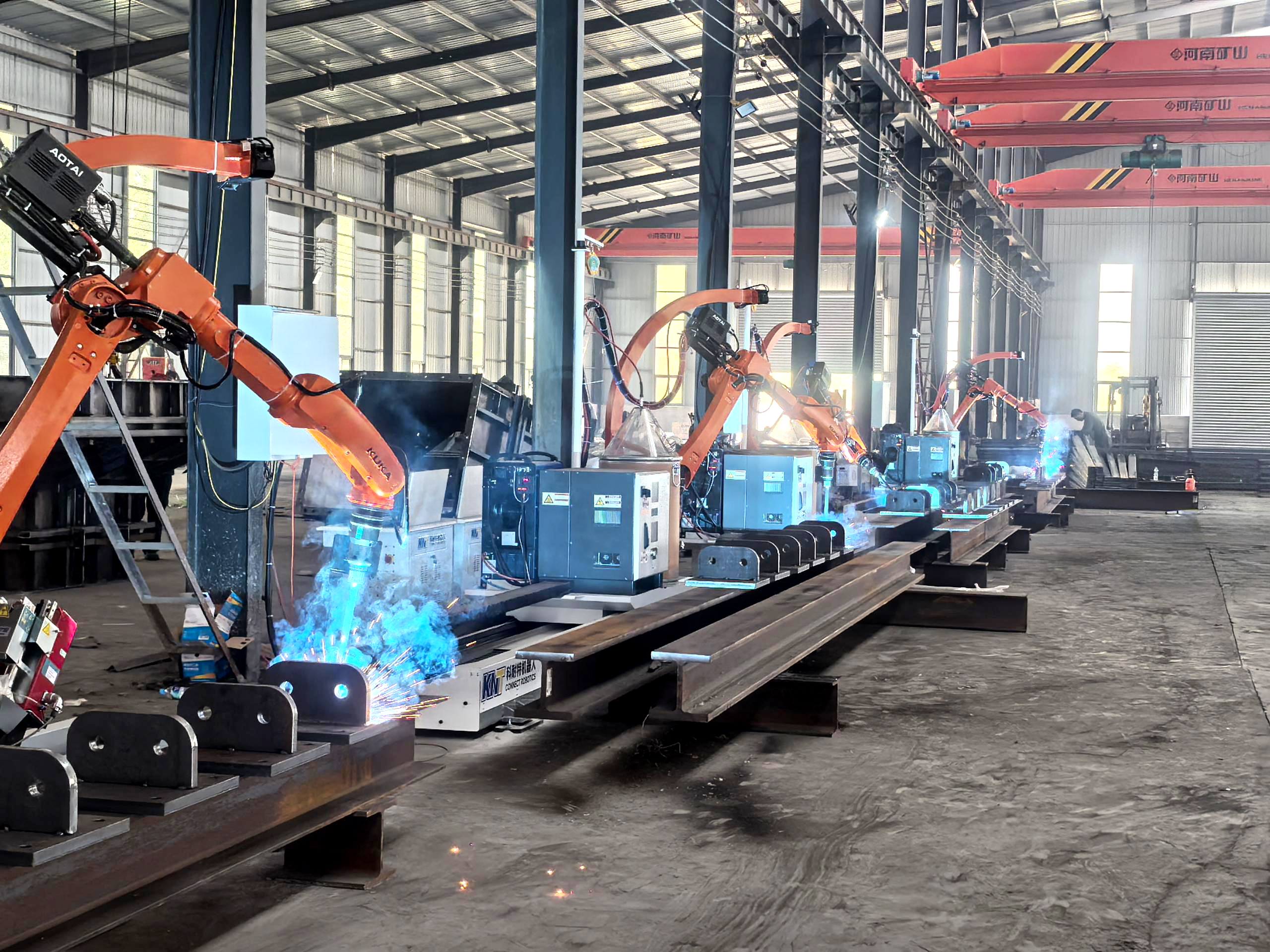

The orbital robotic welding station is an intelligent welding solution that extends the working envelope through ground rail movement. Featuring a 12-meter-long rail bracket, it allows workstations to be arranged on both sides, enabling simultaneous material handling and welding operations. This design significantly boosts production efficiency.
| CONTENT | PARAMETER RANGE | UNIT |
|---|---|---|
| Series | Track series | / |
| Model Number | KSDG0012 | / |
| Degrees of Freedom | 7 | / |
| Required Ambient Temperature | -10~45 | ℃ |
| Maximum End Load | 6 | Kg |
| Working Range | W1500*L12000*H1300 | mm |
| Peak Total Power | 45 | Kg |
| Rated Input Voltage | 380+/-10% | V |
| Rated Input Frequency | 50 | Hz |
| Footprint | 1500*15000 | mm |
| Color Customization | specified location | set |
| Customized labeling | specified location | set |

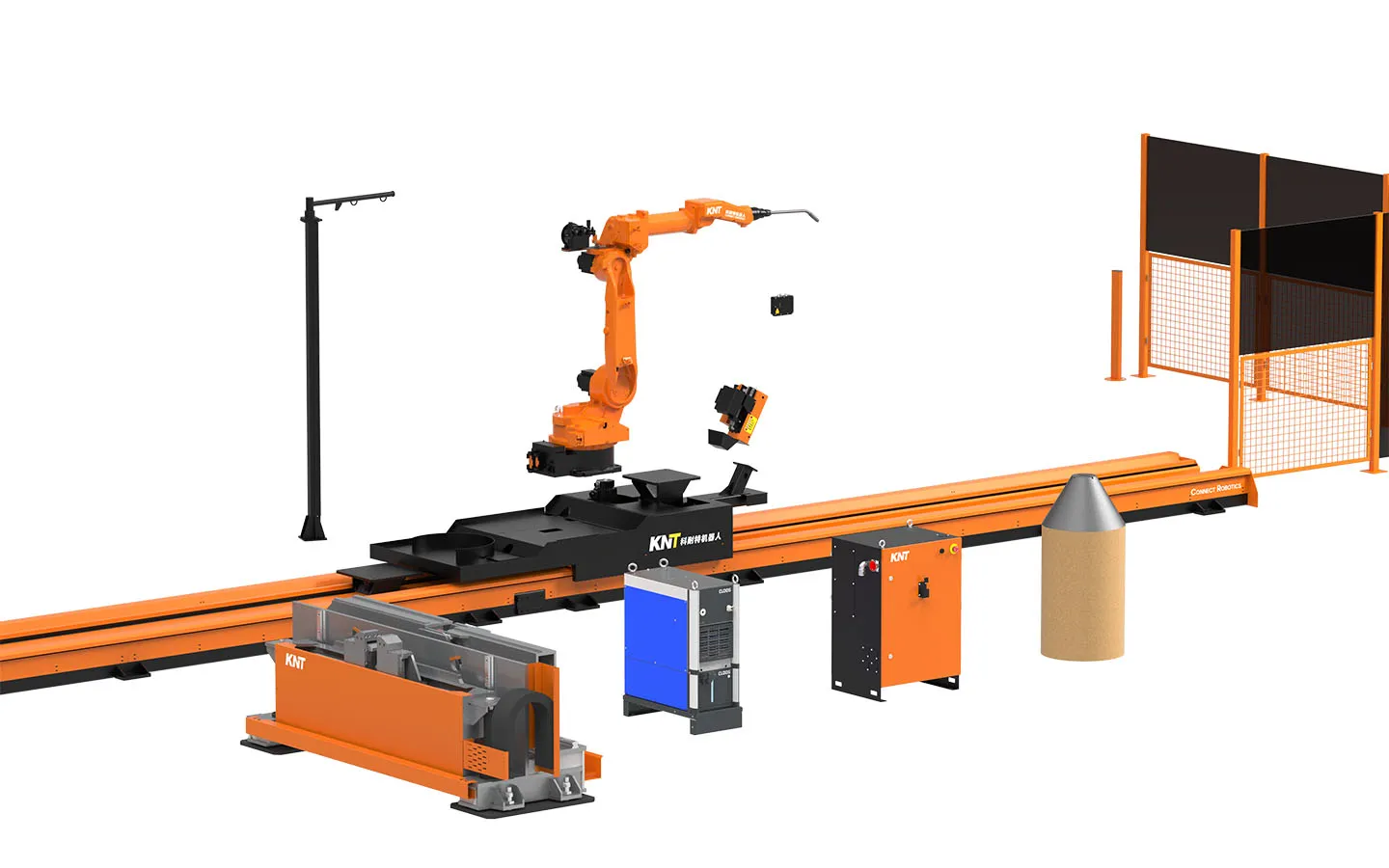

Key Components of a Welding Robot System
A complete welding robot system consists of several essential components working together:

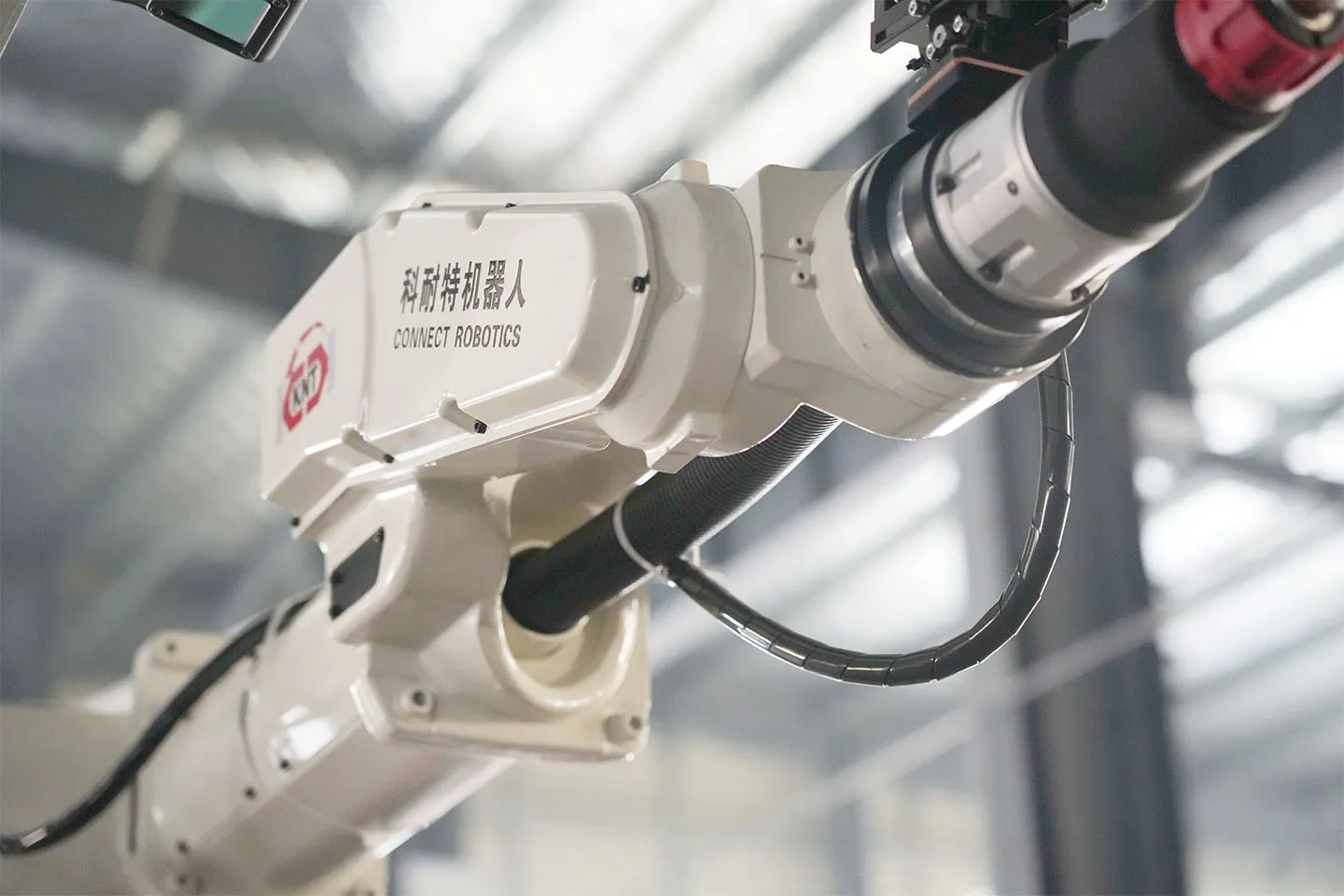

1. Welding Robot
The welding robot features high-precision motion control capabilities, allowing it to perform complex welding actions according to preset programs.
2. Welding Power Source
The welding power source provides stable current and voltage throughout the entire welding process, ensuring consistent weld quality.

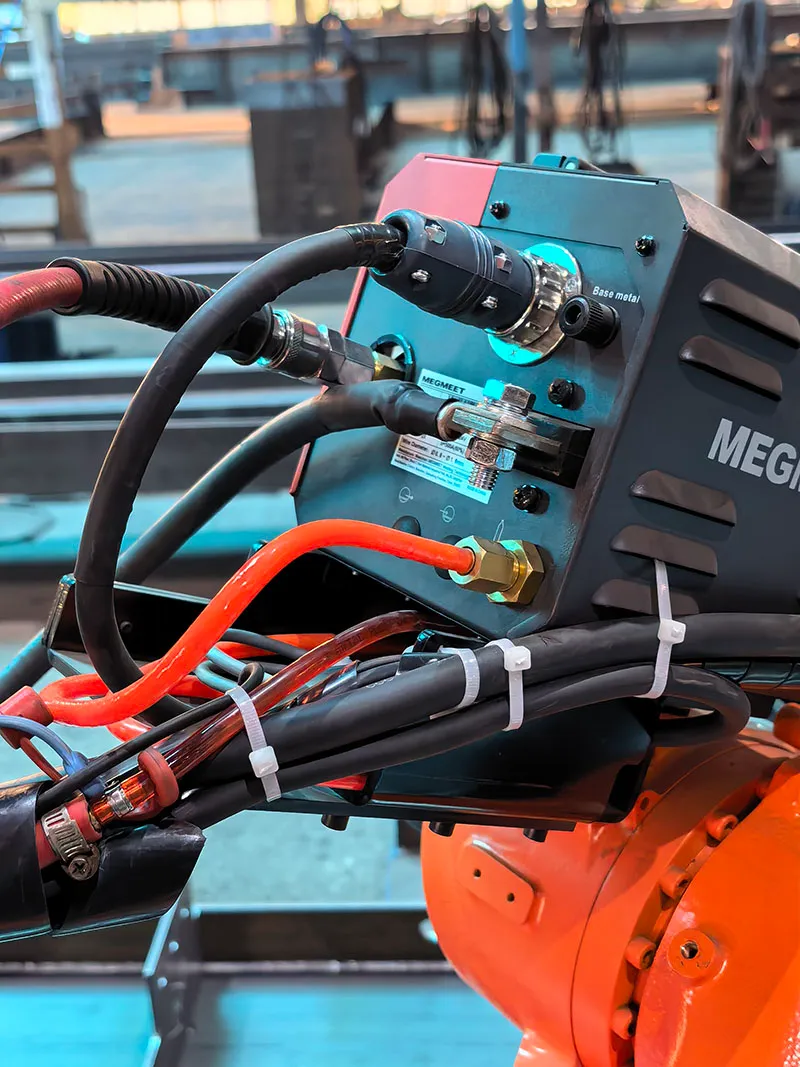

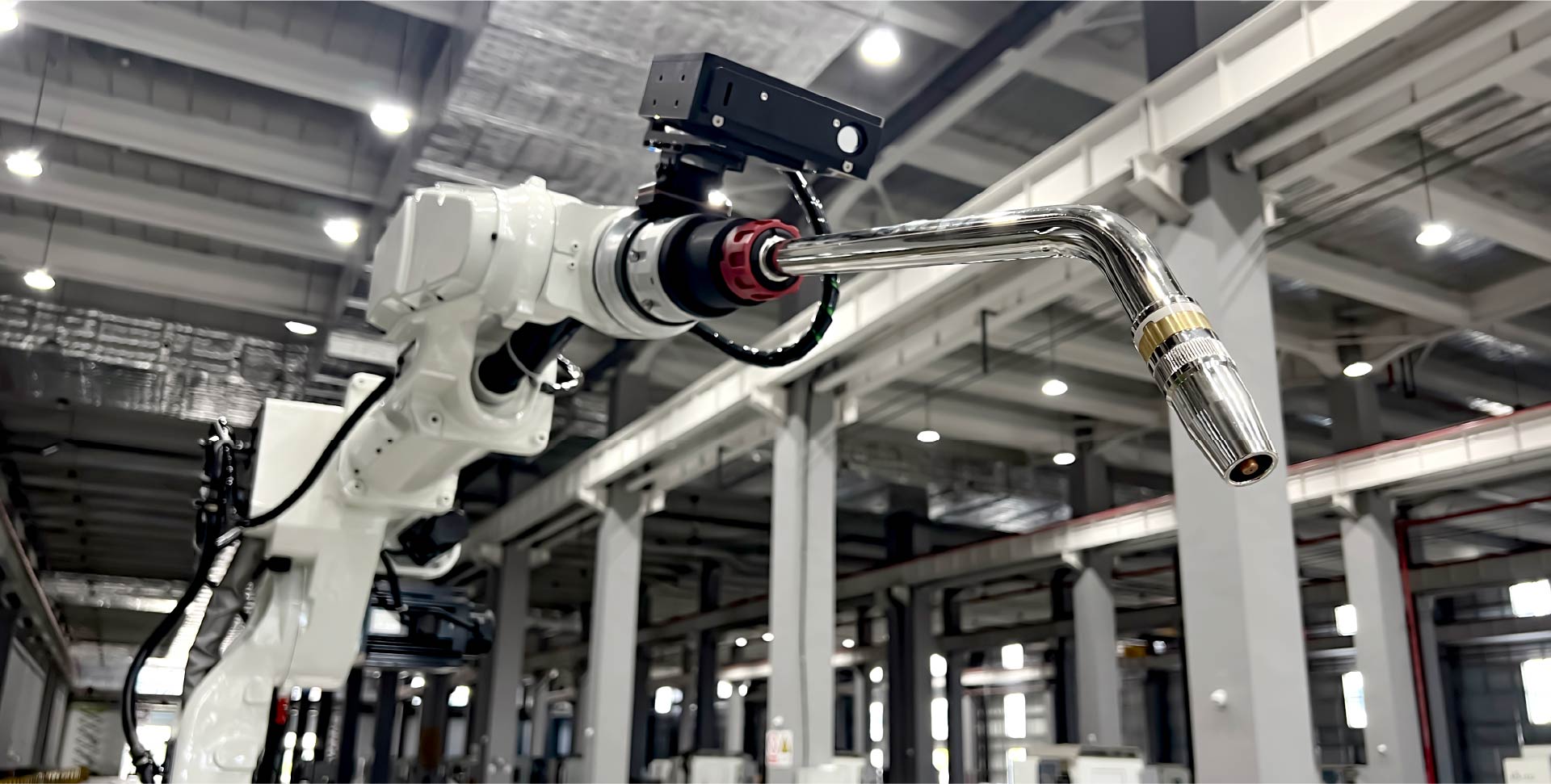

3. Welding Torch and Wire Feeding System
The welding torch directs the welding wire to the joint, while the wire feeding system ensures a steady and uninterrupted supply of filler material.
4. Control System
The control system precisely manages robot movements and welding parameters, supporting both programming and operational settings.
5. Welding Software Package
The equipment includes a self-developed welding software process package, which integrates a database of process parameters for various weld types.
6. Teaching Pendant
The teaching pendant allows operators to program the robot and manually control its movements with ease.
